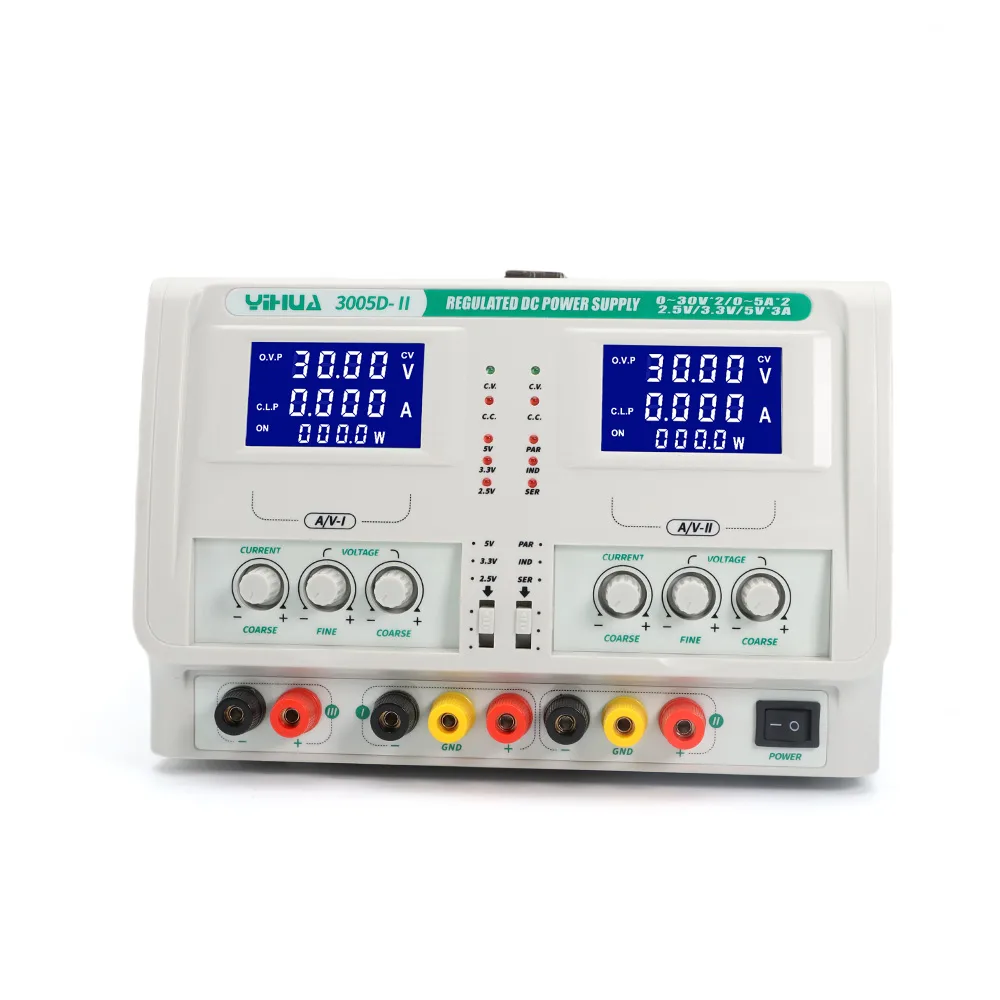

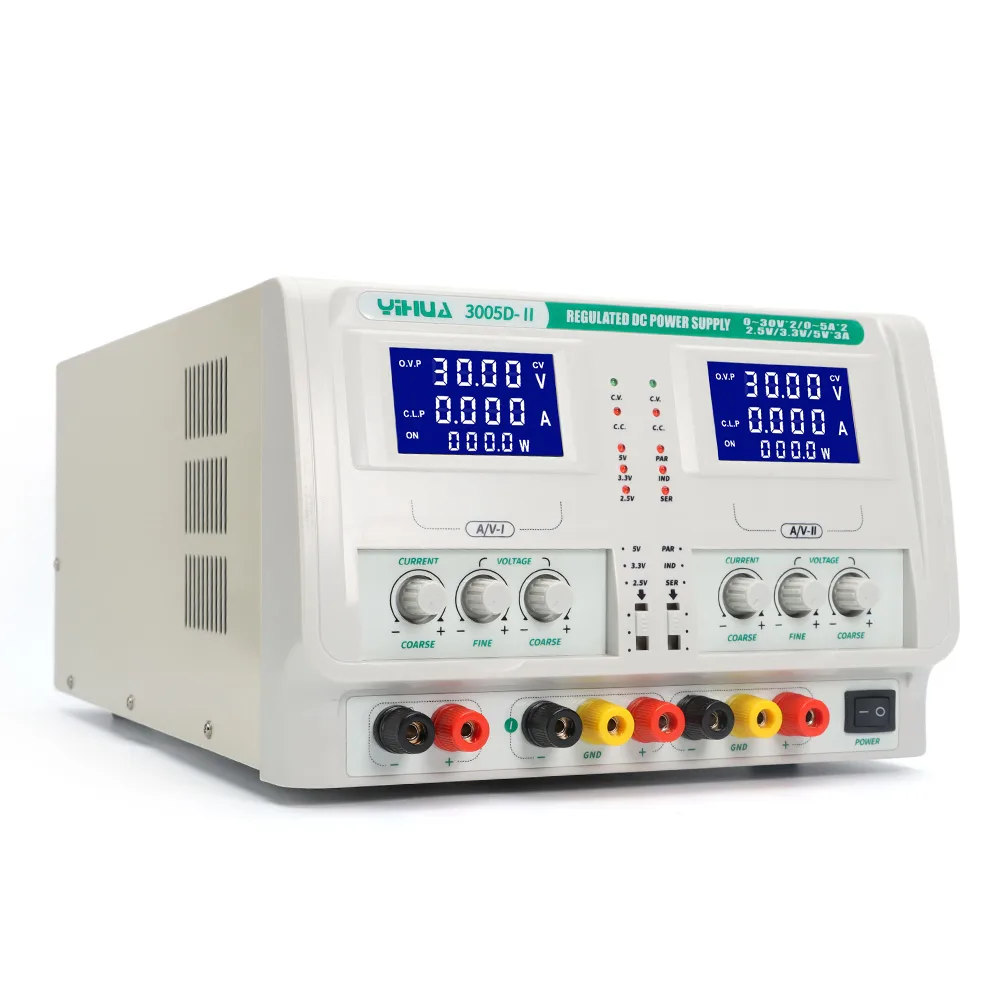

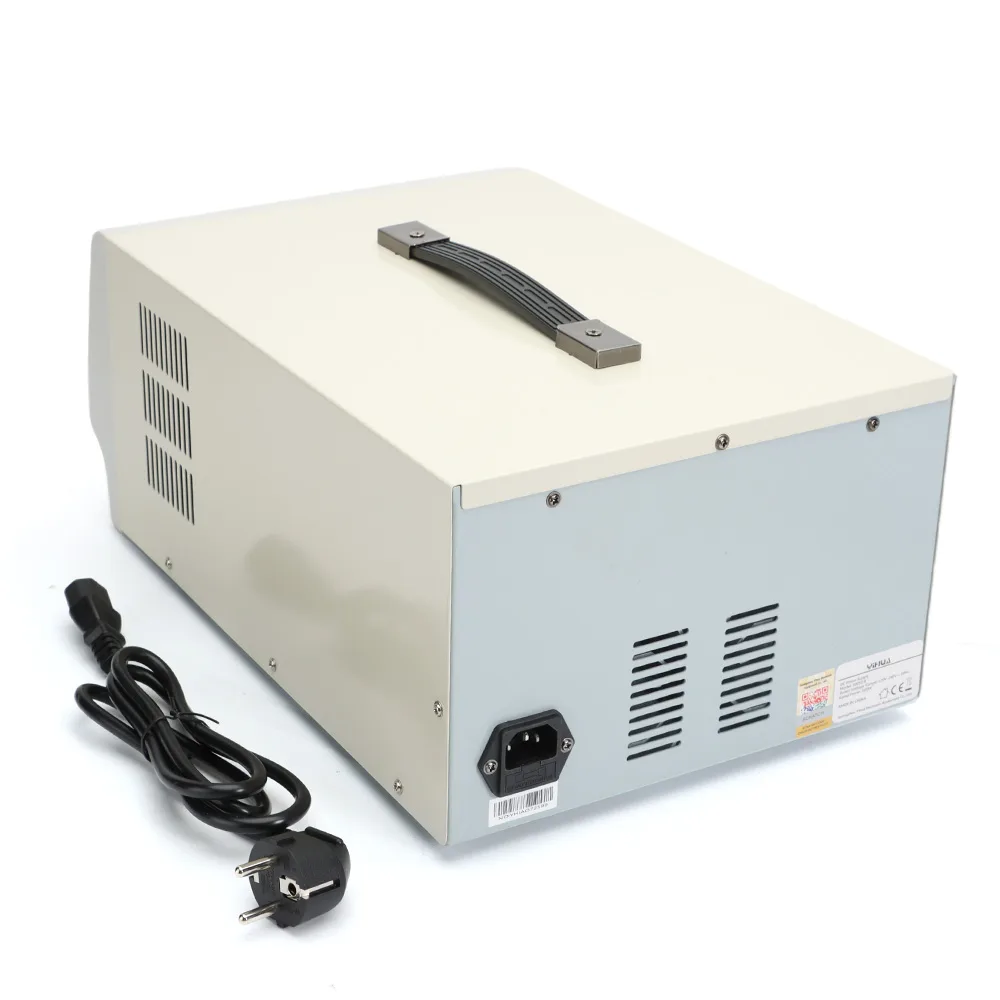

YIHUA 3005D-II
Contact us For Price
Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
Quantity
Free DeliveryOn eligible prepaid orders
Nationwide DeliveryDispatched across India
Secure PaymentUPI, cards & net banking · GST invoice
Easy ReturnsReplacement on eligible items
- Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
- Rate power: 500W
- Main unit dimensions: L370W250H160mm ±5mm
- Display: LCD Line I /II Independent
- Output voltage: DC 0~30V
- Output current: DC 0~5A Line
- Regulation: CV≤0.01%+1mV, CC≤0.2%+1mV Load
- Regulation: CV≤0.01%+5mV (I≤3A)/CC≤0.2%+5mA (I≤3A), CV≤0.01%+7mV (I>3A)/CC≤0.2%+10mA (I>3A) Ripple & Noise (5Hz-1MHz): CV≤0.5mVrms (I≤3A)/CC≤3mArms (I≤3A), CV≤1mVrms (I>3A)/CC≤5mArms (I>3A) Accuracy (Voltage): ±0.5%rdg+2 Units Accuracy (Current): ±0.5%rdg+2 Units Display
- Resolution: ±0.5%rdg+2 Units Line III Output Characteristics
- Output voltage: DC 2.5V/3.3V/5V±0.1V
- Output current: DC 3A Line Regulation ≤1mV Load Regulation ≤10mV Ripple & Noise (5Hz-1MHz) ≤1mVrms Tracking Characteristics Characteristics (In Series): Line Regulation ≤1mV Load Regulation ≤30mV Ripple & Noise (5Hz-1MHz) ≤1mVrms Characteristics (In Parallel): Ripple & Noise (5Hz-1MHz): CV≤0.5mVrms (I≤6A), CV≤1mVrms (I>6A)
| Input voltage | 110~127V/AC, 60Hz or 220~240V/AC, 50Hz |
|---|---|
| Rate power | 500W |
| Main unit dimensions | L370*W250*H160mm ±5mm |
| Display | LCD |
| Output voltage | DC 0~30V |
| Output current | DC 0~5A |
| Line Regulation | CV≤0.01%+1mV, CC≤0.2%+1mV |
| Accuracy (Voltage) | ±0.5%rdg+2 Units |
| Accuracy (Current) | ±0.5%rdg+2 Units |
| Display Resolution | ±0.5%rdg+2 Units |
| Ripple & Noise (5Hz-1MHz) | CV≤0.5mVrms (I≤6A) |
- High-Power 500W Bench Power Supply: Designed for demanding laboratory, testing, repair, and electronics applications.
- Dual Independent Outputs: Line I & Line II provide independent adjustable outputs with 0–30V DC voltage and 0–5A DC current.
- Clear LCD Display: Easy monitoring of output voltage and current for accurate operation.
- Excellent Regulation: Low line and load regulation ensures stable output under varying operating conditions.
- Low Ripple & Noise: Advanced filtering provides clean and stable DC power for sensitive electronic circuits.
- High-Precision Output: Voltage and current accuracy of ±0.5%rdg + 2 units.
- Fixed Auxiliary Output: Line III provides selectable 2.5V / 3.3V / 5V ±0.1V output with up to 3A current.
- Stable Auxiliary Output: Line III offers low line/load regulation and ripple & noise of ≤1mVrms.
- Series Tracking Operation: Outputs can be connected in series for increased voltage with stable tracking characteristics.
- Parallel Tracking Operation: Parallel connection supports higher current output, with ripple & noise performance specified for loads up to and above 6A.
- Independent, Series & Parallel Modes: Flexible output configuration makes the unit suitable for a wide range of testing requirements.
- Wide Input Voltage Compatibility: Supports 110–127V AC (60Hz) or 220–240V AC (50Hz).
- Robust Bench-Top Design: Main unit dimensions approximately 370 × 250 × 160 mm.
- Wide Applications: Ideal for PCB testing, electronics development, R&D laboratories, component testing, production testing, repair, maintenance, and DIY projects
