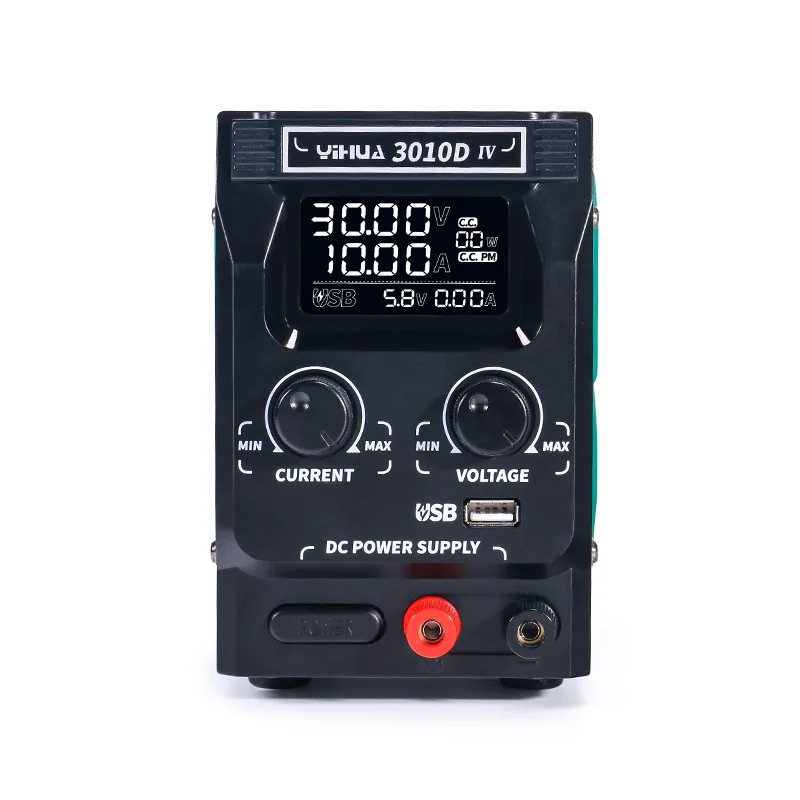

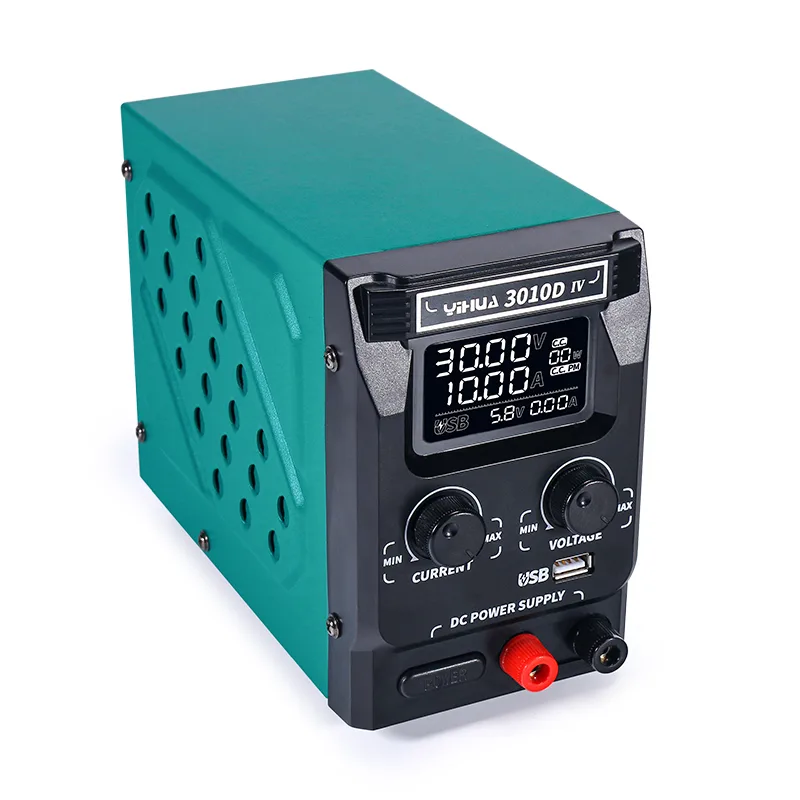

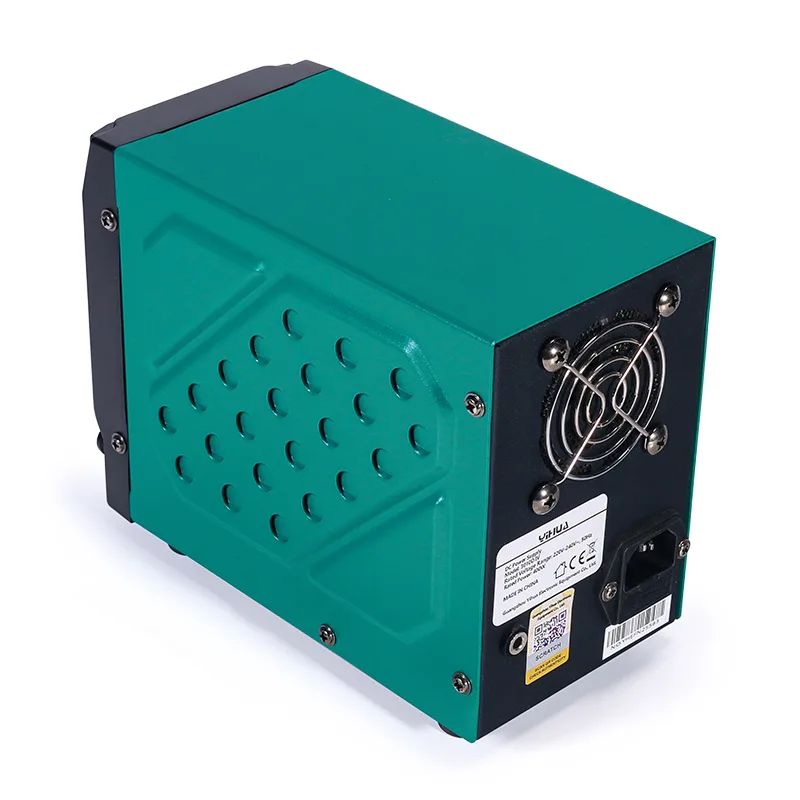

YIHUA 3010D-IV 30V 10A DC power supply with 5V USB fast charger

Name: YIHUA 3010D-IV 30V 10A DC power supply with 5V USB fast charger
Brand: Yihua
SKU: TK-01-0006
Price: 9999 INR
Availability: InStock

SKU: TK-01-0006 Brand: Yihua In Stock

₹9,999 ₹11,999 17% OFF

You save ₹2,000 on this item

Inclusive of all taxes · GST invoice available

Data:

Quantity

Free DeliveryOn eligible prepaid orders

Nationwide DeliveryDispatched across India

Secure PaymentUPI, cards & net banking · GST invoice

Easy ReturnsReplacement on eligible items

Data: input voltage :220V-240V/AC,50Hz Rated power :400W Main unit dimensions:L200W98H154MM±5mm Operating ambient temperature:-10~40℃/14℉~104℉ Relative humidity :<90% Output voltage :Adjustable continuously within DC 0~30V Output current :Adjustable continuously within 0~10A Output power :300W Voltage Precision:<0.1%+0.01V Current Precision:<0.2%+5mA Load regulation:<0.2%+3mA Ripple noise:Vrms<0.2%(10Hz ~ 1MHz) USB output voltage:DC 5V/9V/12V±0.2V USB output power :20W USB current precision:0.4%+10mA USB voltage precision :0.1V USB current pretection:4A/2.5A/2A

Specifications for YIHUA 3010D-IV 30V 10A DC power supply with 5V USB fast charger
input voltage	220V-240V/AC,50Hz
Rated power	400W
Main unit dimensions	L200W98H154MM±5mm
Operating ambient temperature	-10~40℃/14℉~104℉
Relative humidity	<90%
Output voltage	Adjustable continuously within DC 0~30V
Output current	Adjustable continuously within 0~10A
Output power	300W
Voltage Precision	<0.1%+0.01V
Current Precision	<0.2%+5mA
Load regulation	<0.2%+3mA
Ripple noise	Vrms<0.2%(10Hz ~ 1MHz)
USB output voltage	DC 5V/9V/12V±0.2V
USB output power	20W USB current precision:0.4%+10mA
USB voltage precision	0.1V USB current pretection:4A/2.5A/2A
