New
SMD Rework Station
YIHUA8858-IV
Portable LED Display Rework Station Heat Gun
Contact us For Price
In Stock
New
Hover to zoom

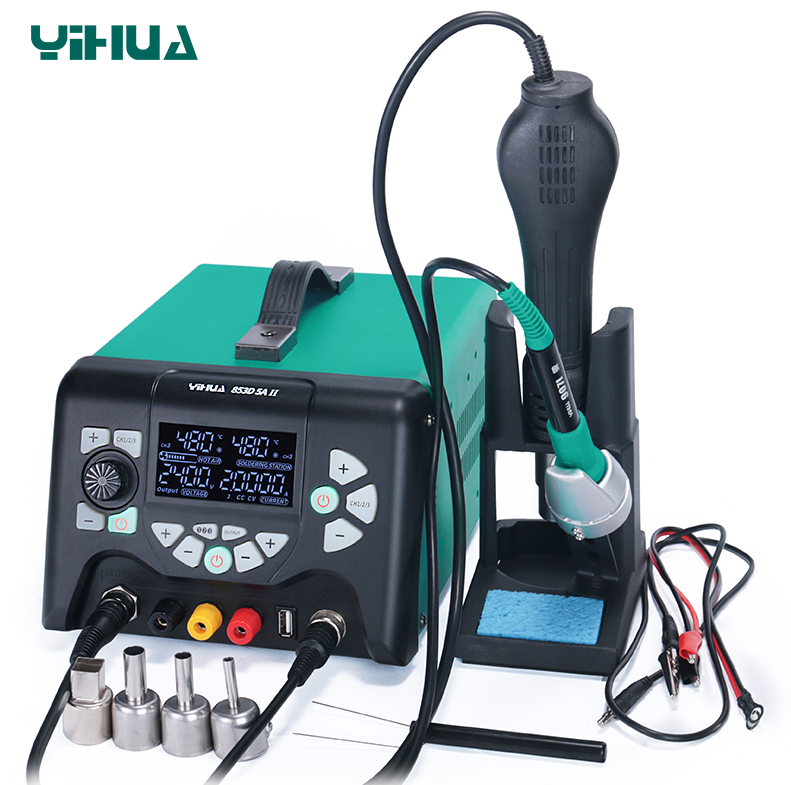

YIHUA-853D5A-II
Contact us For Price
Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
Quantity
Free DeliveryOn eligible prepaid orders
Nationwide DeliveryDispatched across India
Secure PaymentUPI, cards & net banking · GST invoice
Easy ReturnsReplacement on eligible items
- Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
- Rate power: 970W
- Main unit dimensions: L250W190H137mm ±5mm Hot air rework station
- Air delivery: Brushless motor with smooth air delivery Air volume ≤120L/min Temp. range: 100~480℃/212~896℉
- Display: LED Soldering station Temp. range: 200~480℃/392~896℉ Tip to ground resistance<2ohms Power supply
- Output voltage: DC 0~30V±5%
- Output current: DC 0~5A(adjustable) Line regulation <0.067%±2mV Ripple & noise: Vrms<0.1%
- Voltage setting accuracy: 0.1V
- Current setting accuracy: 0.01A
- Voltage display accuracy: <0.6%±20mV
- Current display accuracy: <0.6%±0.2mA
| Input voltage | 110~127V/AC, 60Hz or 220~240V/AC, 50Hz |
|---|---|
| Rate power | 970W |
| Main unit dimensions | L250*W190*H137mm ±5mm |
| Air delivery | Brushless motor with smooth air delivery |
| Display | LED |
| Output voltage | DC 0~30V±5% |
| Output current | DC 0~5A(adjustable) |
| Ripple & noise | Vrms<0.1% |
| Voltage setting accuracy | 0.1V |
| Current setting accuracy | 0.01A |
| Voltage display accuracy | <0.6%±20mV |
| Current display accuracy | <0.6%±0.2mA |
- 3-in-1 Professional Workstation: Hot Air Rework + Soldering Station + DC Power Supply
- 970W High-Power Performance for demanding repair applications
- Hot Air Rework: 100–480°C with smooth brushless motor air delivery
- High Airflow: Up to 120L/min
- Soldering Station: 200–480°C with tip-to-ground resistance <2Ω
- Adjustable DC Power Supply: 0–30V / 0–5A
- Precise Voltage Setting: 0.1V accuracy
- Precise Current Setting: 0.01A accuracy
- Low Ripple & Noise: Vrms <0.1%
- Excellent Line Regulation: <0.067% ±2mV
- LED Display for easy monitoring of operating parameters
- Wide Input Voltage Compatibility: 110–127V AC / 220–240V AC
- Stable & Precise Output Control for sensitive electronic components
- Ideal for PCB Repair, SMD Rework, Electronics Testing & Laboratory Applications
"4PCS/CTN
Unit weight: 3.8 KG/PCS
CTN weight: 15.07 KG/CTN
Inner box: 36*30*17 cm
Outer carton: 62.5*37.5*38 cm"
Warranty terms for this product have not been published yet.
No reviews yet
Be the first to review the YIHUA-853D5A-II.
