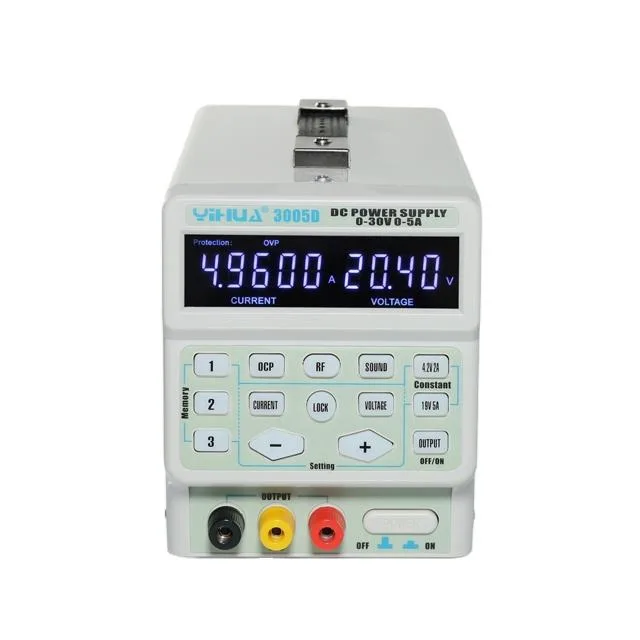

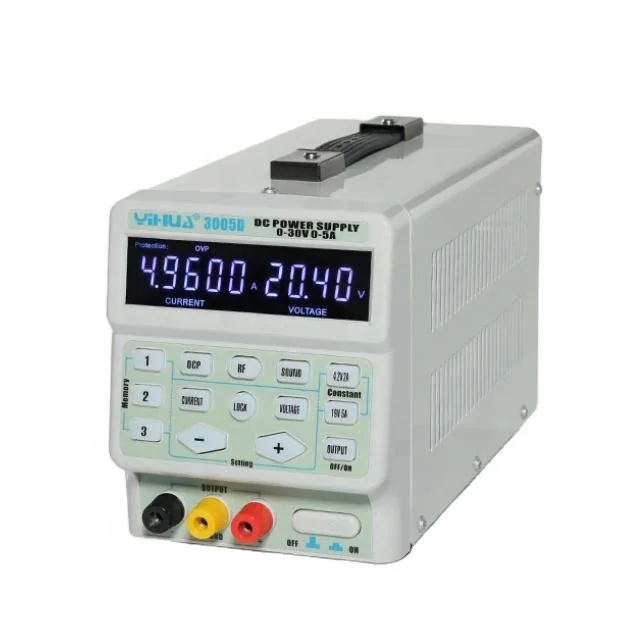

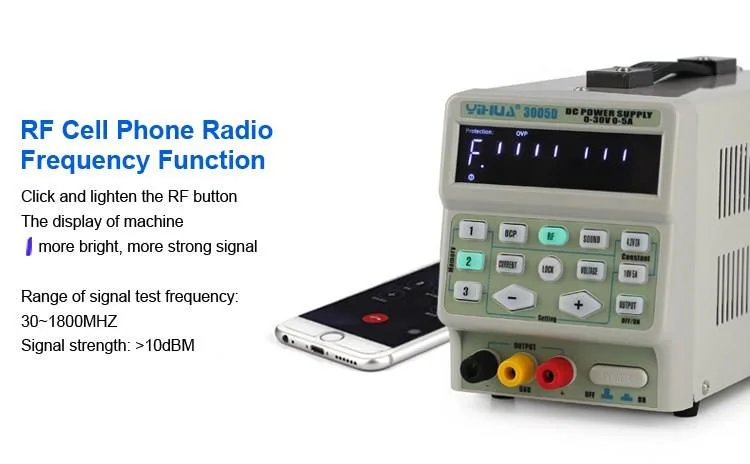

YIHUA3005D
Contact us For Price
Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
Quantity
Free DeliveryOn eligible prepaid orders
Nationwide DeliveryDispatched across India
Secure PaymentUPI, cards & net banking · GST invoice
Easy ReturnsReplacement on eligible items
- Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
- Rate power: 195W
- Main unit dimensions: L268W125H155mm ±5mm
- Display: LCD
- Output voltage: DC 0~30V (Precision ±0.02V) Line regulation ≤0.01%+3mV Load regulation ≤0.01%+3mV Ripple & noise <0.1%Vrms Temp. coefficient ≤300PM/℃
- Output current: DC 0~5A Line regulation ≤0.1%+3mA Load regulation ≤0.1%+3mA
- Output current accuracy: 0.0001~0.0450A ±0.0001A, 0.045~0.45A ±0.001A, 0.45~5A ±0.01A
| Input voltage | 110~127V/AC, 60Hz or 220~240V/AC, 50Hz |
|---|---|
| Rate power | 195W |
| Main unit dimensions | L268*W125*H155mm ±5mm |
| Display | LCD |
| Output voltage | DC 0~30V (Precision ±0.02V) |
| Output current | DC 0~5A |
- Wide Input Voltage Compatibility: Supports 110–127V AC (60Hz) or 220–240V AC (50Hz).
- 195W Rated Power: Provides reliable and efficient performance for laboratory and electronics applications.
- Adjustable DC Output: Continuously adjustable 0–30V DC output with high voltage precision of ±0.02V.
- Adjustable Output Current: Provides 0–5A DC continuously adjustable current output.
- Clear LCD Display: Displays output parameters clearly for easy monitoring and precise operation.
- Excellent Line Regulation: Voltage line regulation of ≤0.01% + 3mV and current line regulation of ≤0.1% + 3mA.
- Excellent Load Regulation: Maintains stable output with voltage load regulation of ≤0.01% + 3mV and current load regulation of ≤0.1% + 3mA.
- Low Ripple & Noise: Ripple and noise maintained below 0.1% Vrms for cleaner and more stable DC output.
- High-Precision Current Measurement: Current accuracy of ±0.0001A at low current, ±0.001A from 0.045–0.45A, and ±0.01A from 0.45–5A.
- Temperature Stability: Temperature coefficient of ≤300 PPM/°C helps maintain consistent output performance.
- Compact Bench Design: Main unit dimensions approximately 268 × 125 × 155 mm, suitable for laboratory benches and workstations.
- Versatile Applications: Ideal for PCB testing, electronics repair, laboratory experiments, R&D, component testing, DIY projects, and professional maintenance.
"6PCS/CTNUnit weight: 2.3 KG/PCSCTN weight: 16.2 KG/CTNInner box: 33*17.5*20.2 cmOuter carton: 60*36*47.5 cm"
Warranty terms for this product have not been published yet.
No reviews yet
Be the first to review the YIHUA3005D.
Related equipment
You May Also Like
Other instruments from the same category and brand.
New
Best Seller
New
DC Power Supply

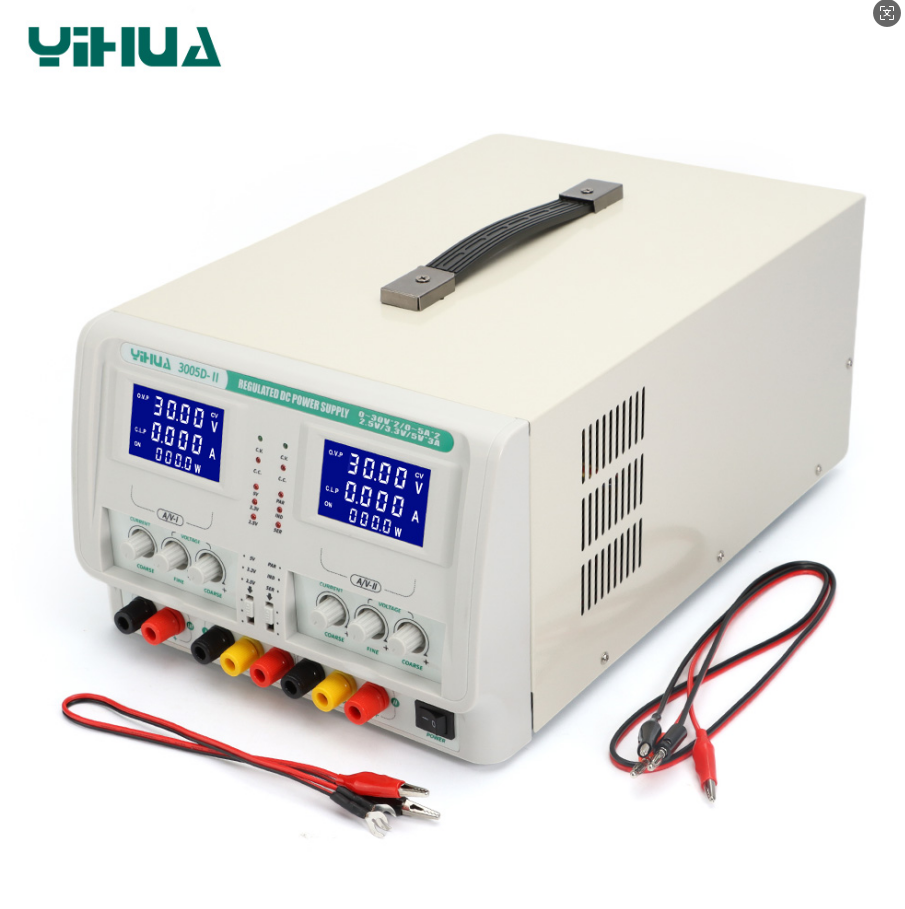

YIHUA 3005D-II
