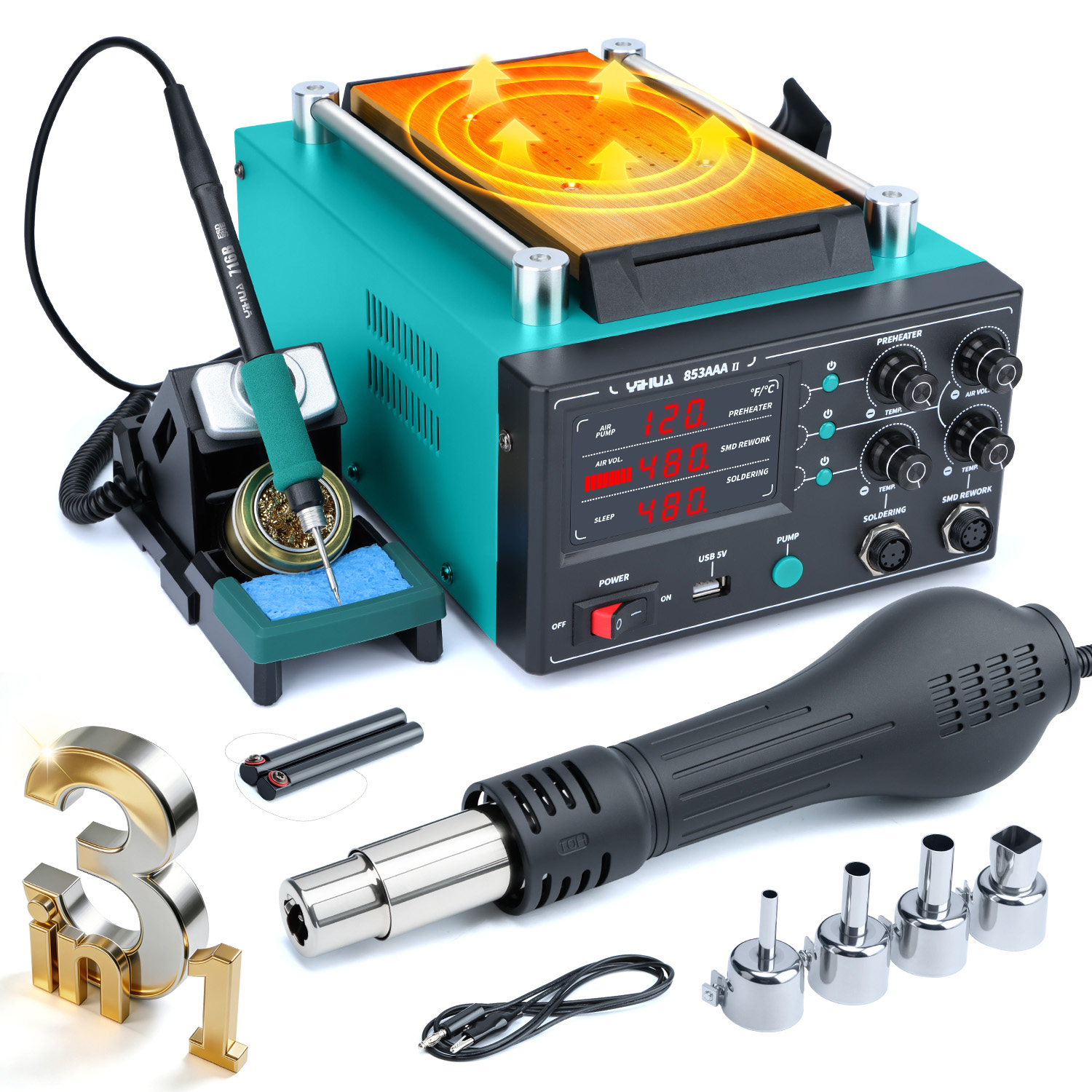

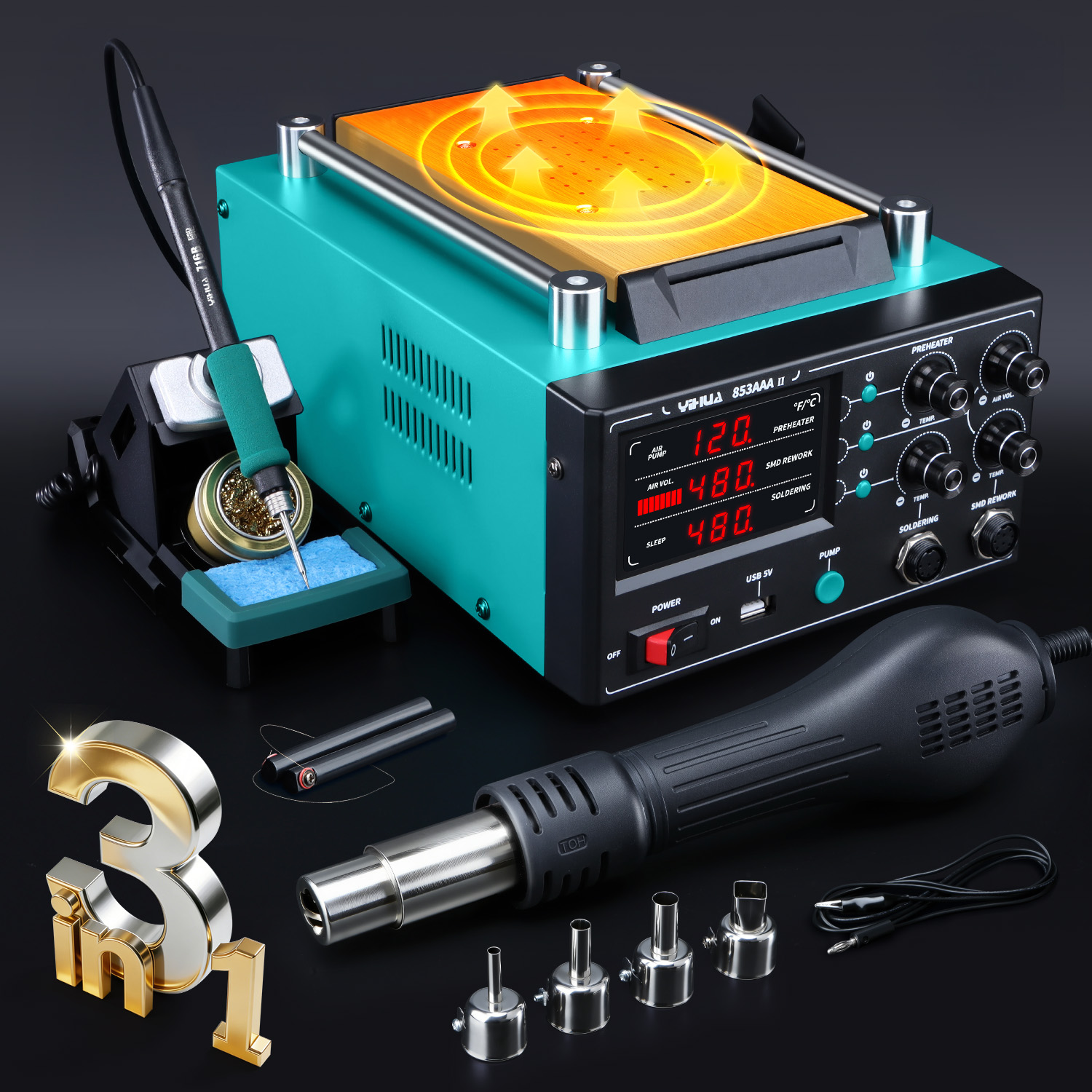

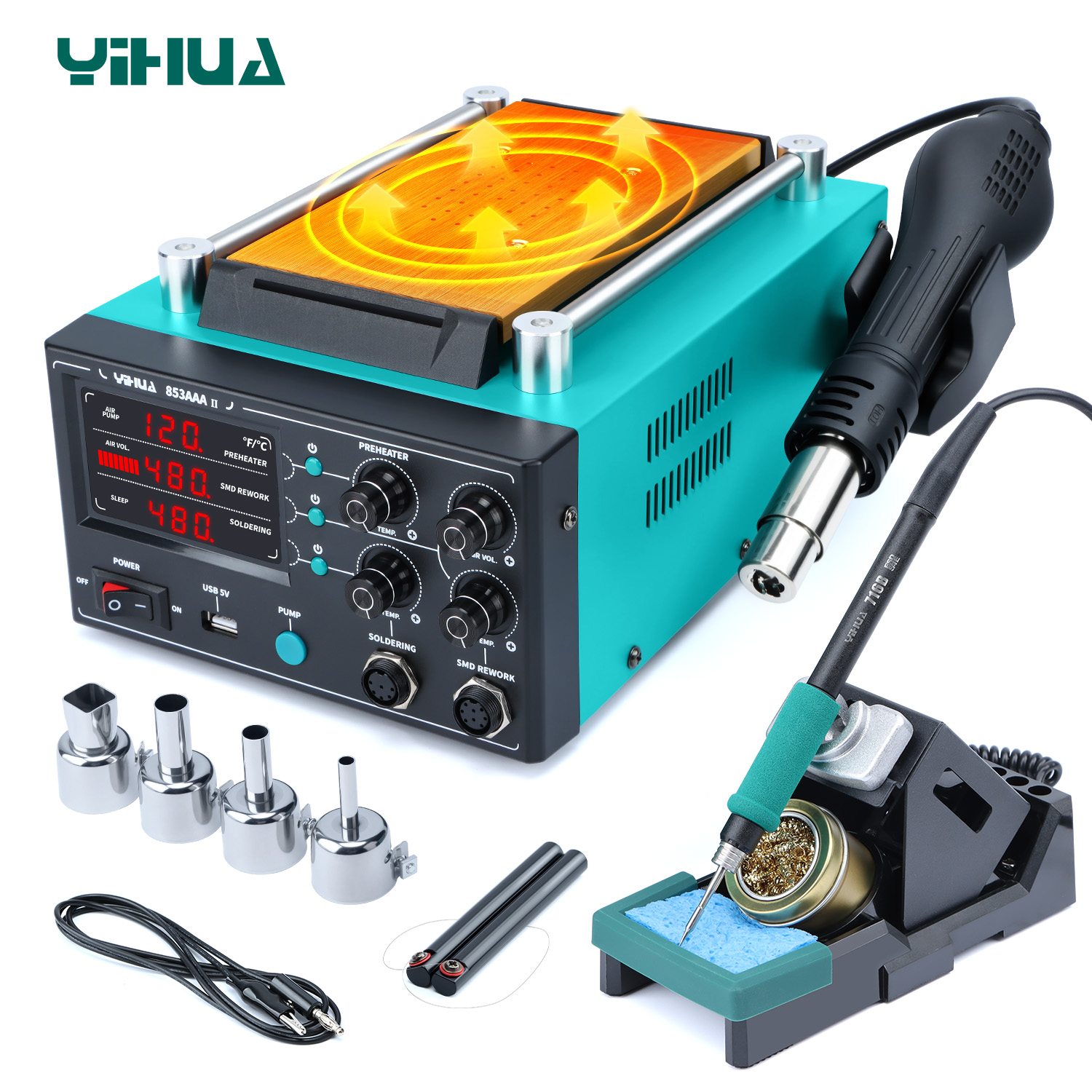

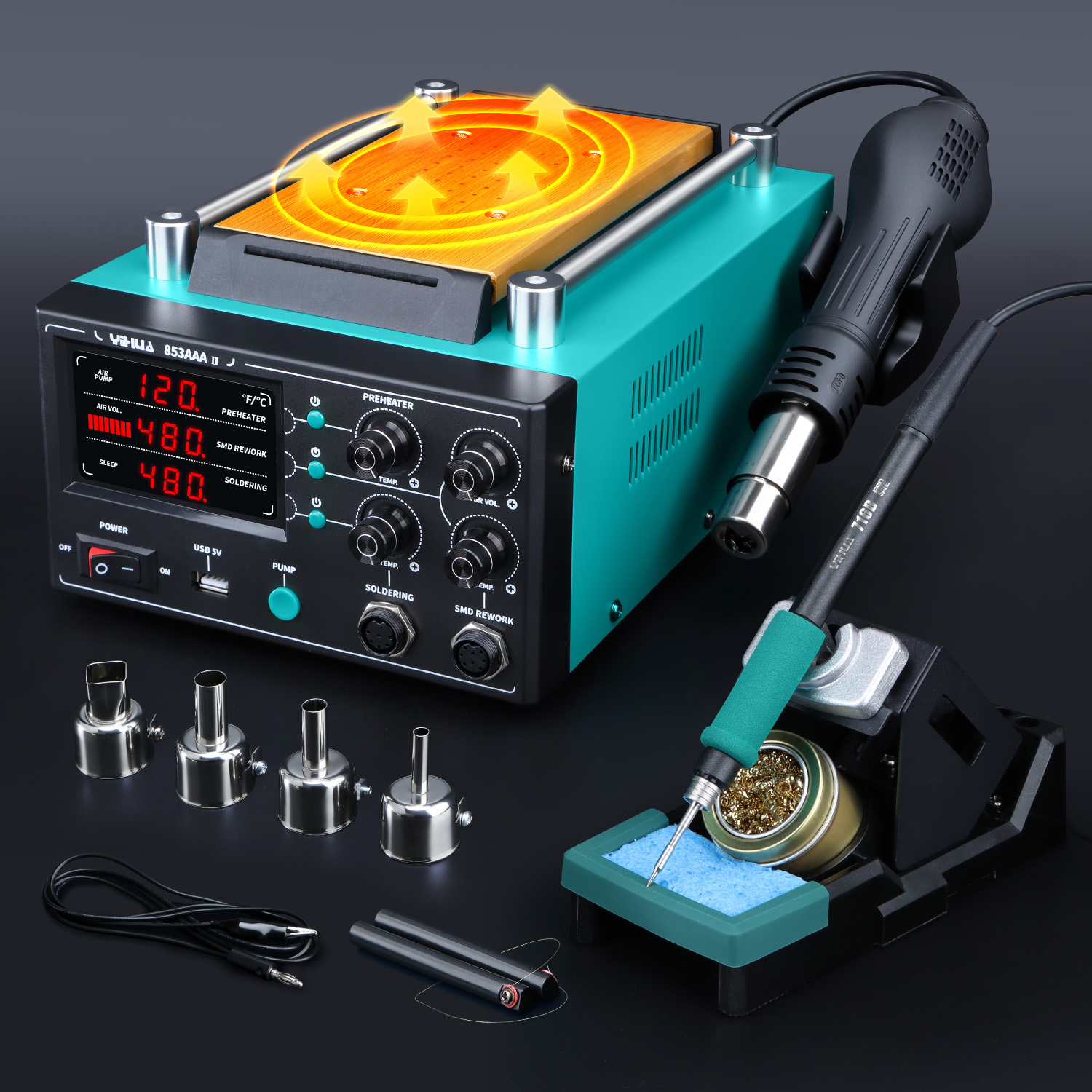

YIHUA853AAA-II ( seperator , C210 soldering iron, hot air gun 3in1 work together)

• 3.This device has the following user-friendly design features: A. Celsius/Fahrenheit temperature display: Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices. B. soldering iron have fixed 10mins iron sleep function; C. Temperature correction feature; D. The machine have Buzzer Prompt function.
• Technical data: Rated Voltage Range:220V-240V Rated Frequency:50Hz Rated Power:1240W Main Unit Dimensions:L275xW195xH130mm ±5mm Operating Ambient Temperature:0〜40℃/32℉〜104℉ Screen Separator Temperature Range:50℃〜120℃/122℉〜248℉ Display:Nixie LED Heater Surface Area:200×110mm ±5mm Hot Air Rework Station Air Delivery:Brushless blower with smooth air delivery
• Temperature range: 100〜480℃/212〜896℉ Air flow:≤120L/min Display mode:Nixie LED Soldering Station
• Output power: Rated power :40W (210 Handpiece) Temperature range:200〜480℃/392〜896℉
• Soldering iron: ESD design Display mode:Nixie LED

Yihua 853AAA-II: Product Features & Technical Specifications

Key Features

Dual Temperature Units: Features a flexible temperature display function that can be easily configured to show either Celsius or Fahrenheit depending on regional preferences.

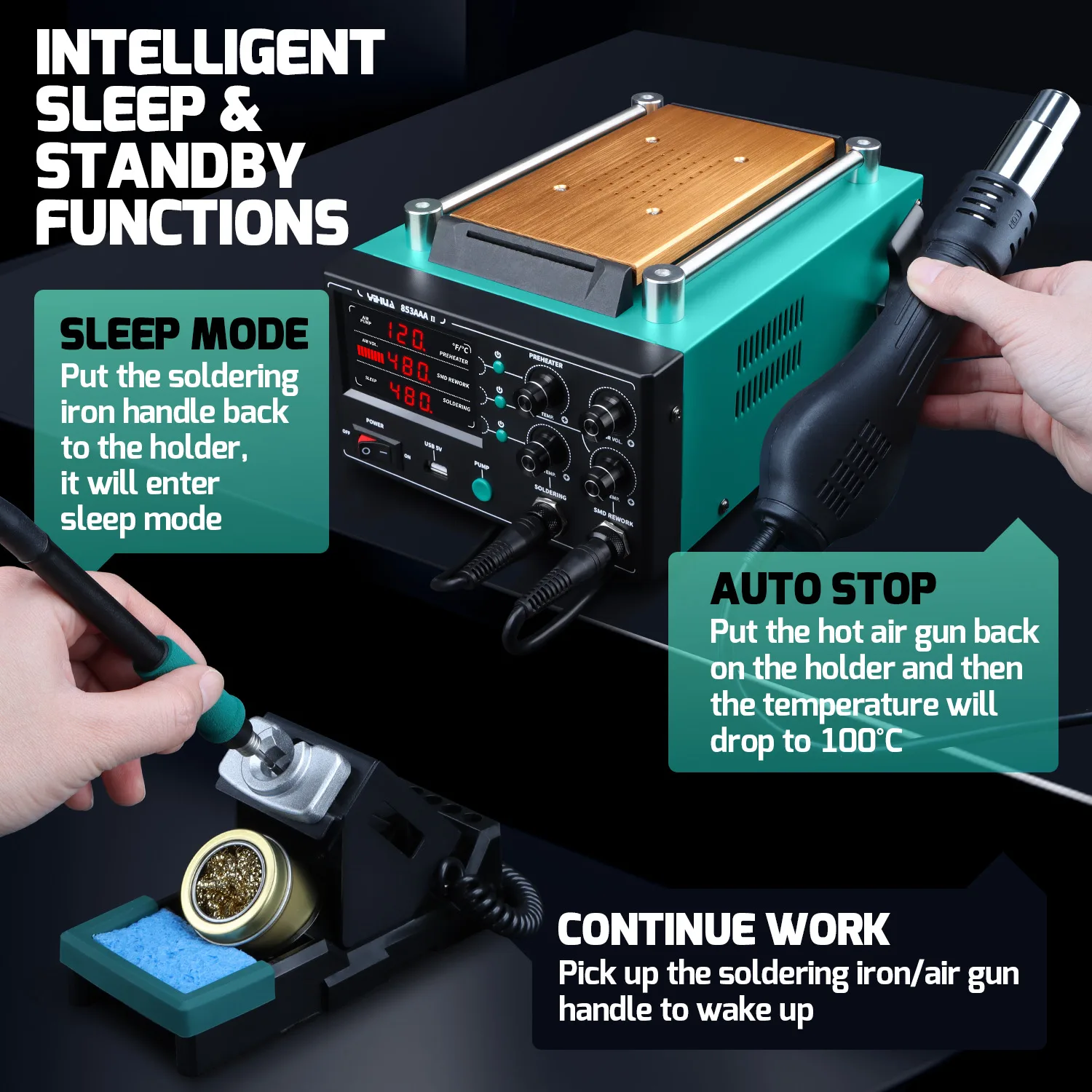

Auto-Sleep Function: The soldering iron includes a fixed 10-minute intelligent sleep mode to conserve energy and prolong heating element life.

Temperature Correction: Built-in calibration feature allows for accurate temperature adjustments and maintenance.

Buzzer Prompt: Equipped with an audible buzzer prompt function for operational feedback.

ESD-Safe Soldering Design: The soldering station features a strict ESD-safe design to protect sensitive components during work.

Technical Data

Rated Voltage Range: 220V–240V

Rated Frequency: 50Hz

Rated Power: 1240W

Main Unit Dimensions: 275 × 195 × 130 mm (±5 mm)

Operating Ambient Temperature: 0°C to 40°C / 32°F to 104°F

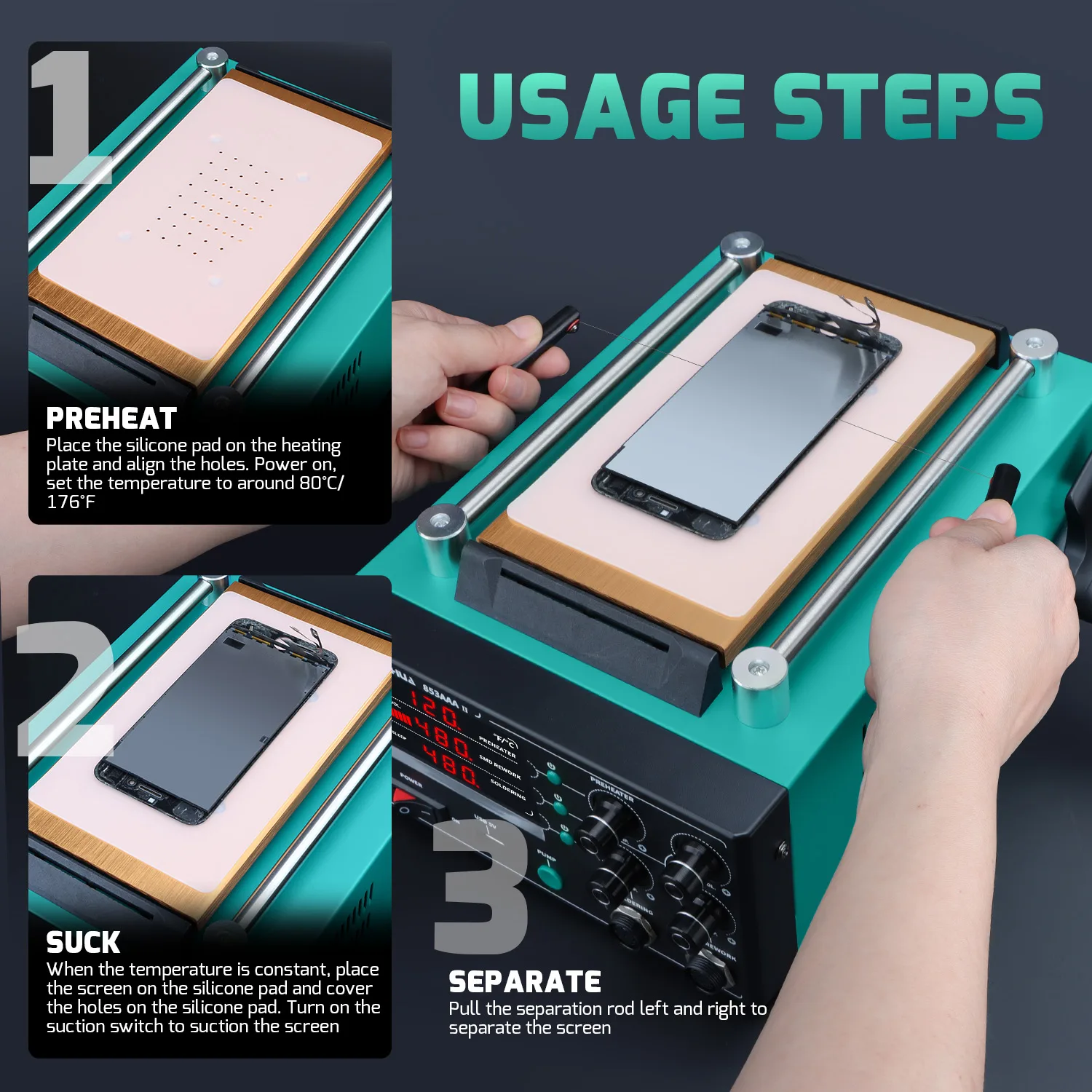

Screen Separator

Temperature Range: 50°C to 120°C / 122°F to 248°F

Display Type: Nixie LED

Heater Surface Area: 200 × 110 mm (±5 mm)

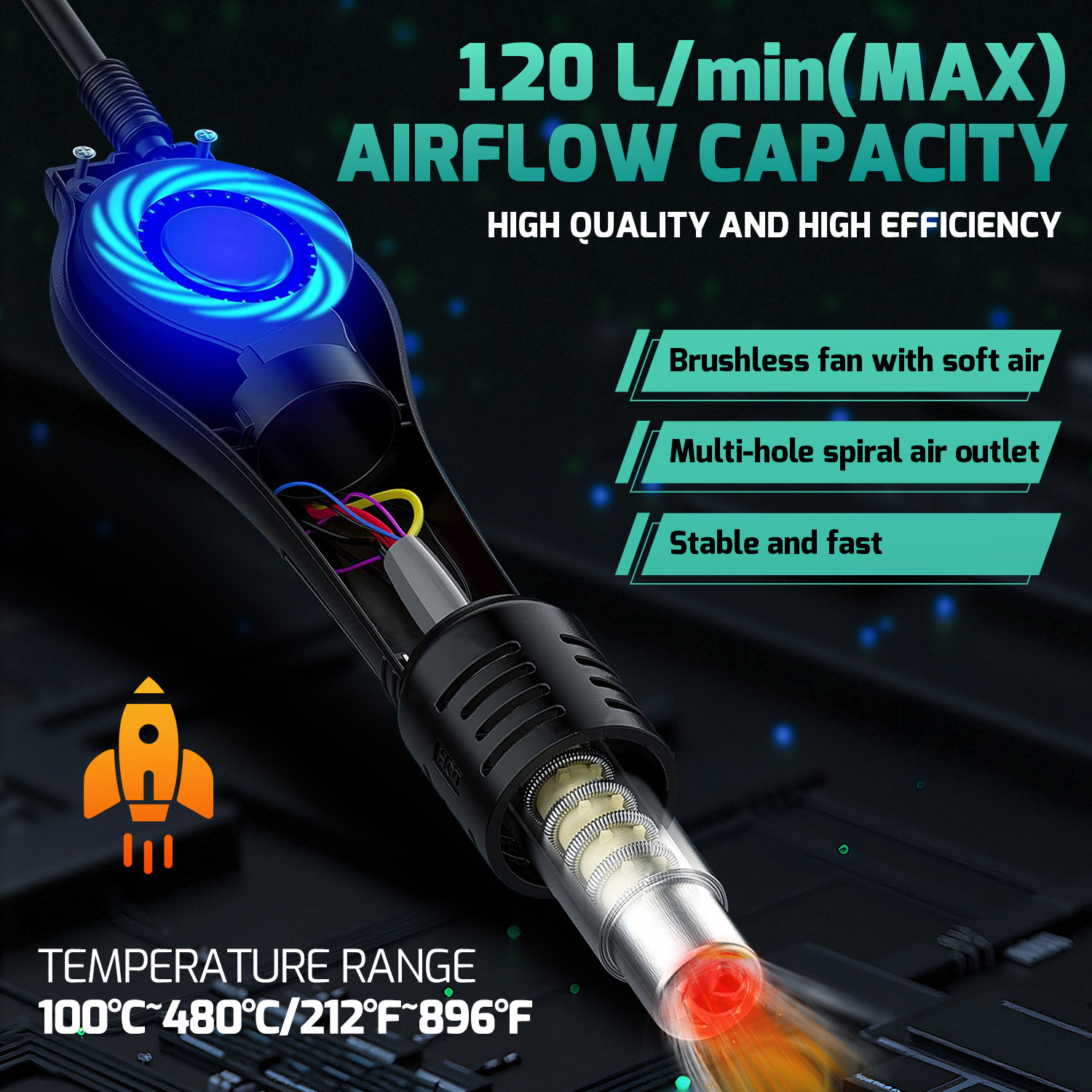

Hot Air Rework Station

Air Delivery: Brushless blower for smooth, consistent airflow

Temperature Range: 100°C to 480°C / 212°F to 896°F

Air Flow: ≤120 L/min

Display Type: Nixie LED

Soldering Station

Output Power: 40W (Rated power using 210 Handpiece)

Temperature Range: 200°C to 480°C / 392°F to 896°F

Display Type: Nixie LED
"Gross weight：3.75KG/pcs

inner box size :33.3*33.3*16CM

outer carton qty：3pcs/ctn

outer carton size:35*35*50CM

outer carton gross weight:11.8kg/ctn"
